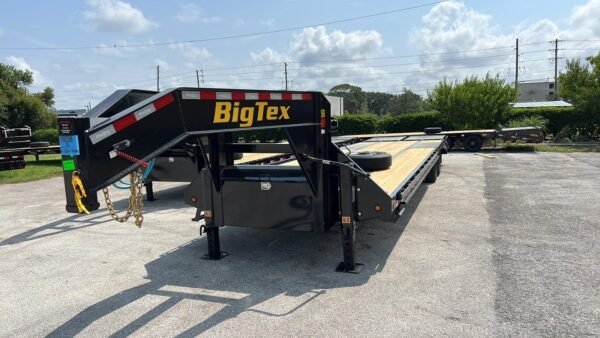

Big Tex 22GN 35′ Tandem Dual Gooseneck Trailer with Mega Ramps – 35D5A-MRBK

The Big Tex 22GN 35-Foot Tandem Dual Gooseneck Trailer (Model 22GN-35D5A-MRBK) is a powerhouse built for serious haulers. Designed for heavy-duty performance, this trailer combines exceptional strength, stability, and functionality — perfect for transporting machinery, vehicles, or bulk loads over long distances.

With a 35 ft deck and 5 ft Mega Ramps, it delivers maximum loading flexibility. The trailer’s dual-wheel tandem axles provide outstanding load capacity, while its pierced-beam frame design enhances strength and lowers the deck height for smoother loading and better stability.

The 22GN series is built with premium-grade steel, a treated wood floor, and a black powder-coated finish for corrosion resistance and long-term reliability.

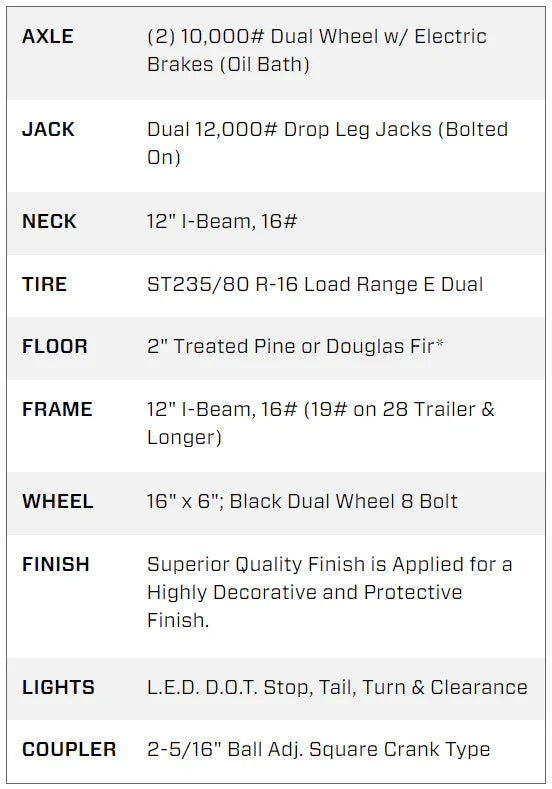

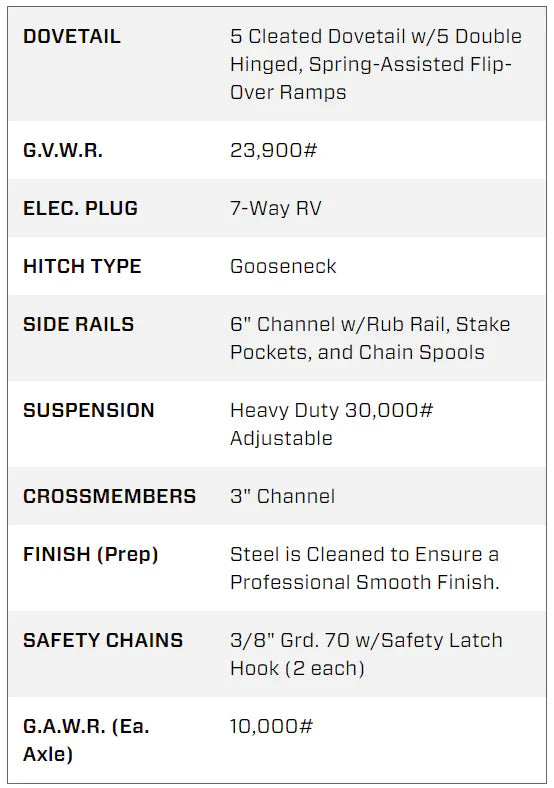

Key Specifications:

• Model: 22GN-35D5A-MRBK

• Trailer Type: Gooseneck Flatbed Trailer

• Length: 35 ft deck + 5 ft Mega Ramps (Total 40 ft)

• Width: 102 in (8.5 ft)

• GVWR: 23,900 lbs

• Payload Capacity: Approx. 17,500 lbs

• Curb Weight: ~6,400 lbs

• Frame: 12” I-beam, pierced-beam construction

• Axles: (2) 10,000 lb dual-wheel oil-bath brake axles

• Brakes: Electric brakes on both axles

• Suspension: Heavy-duty multi-leaf spring with equalizer

• Deck Material: Treated pine wood

• Coupler: 2-5/16” adjustable gooseneck coupler

• Jack System: Dual 12,000 lb drop-leg jacks (side wind)

• Ramps: 5 ft Mega Ramps (fold flat for full-length deck extension)

• Wheels/Tires: 16” dual radial tires, 8 on 6.5” bolt pattern

• Lighting: LED DOT-approved sealed lighting

• Finish: Durable black powder-coated paint

• Tie-Downs: Rub rail, stake pockets, and D-rings for load security

• Safety Features: Breakaway switch, reflective DOT tape, and safety chains

Ideal For:

• Heavy equipment and vehicle hauling

• Construction and industrial use

• Farm and ranch transport

• Long-distance freight hauling

Why Choose Big Tex 22GN:

The 22GN series stands as a benchmark for commercial-grade durability. It’s engineered for professionals who demand unmatched hauling capacity, superior stability, and a long service life under the toughest working conditions.
